Sanitary facilities for kindergartens and similar institutions have very specific design requirements. A toilet facility must offer the greatest possible safety, should not impede the little ones' urge to explore and discover, and must allow the carers quick access in every situation. Our Design 30 KG cubicle system meets these requirements in every respect in a cost-effective solution.
-
Products
-
WC cubicles
-
Kindergarten WC cubicles
- 30 KG WC cubicle
Design 30 KG WC cubicle
Our toilet cubicle creates comfortable spaces for large and small guests!
Technical Specifications

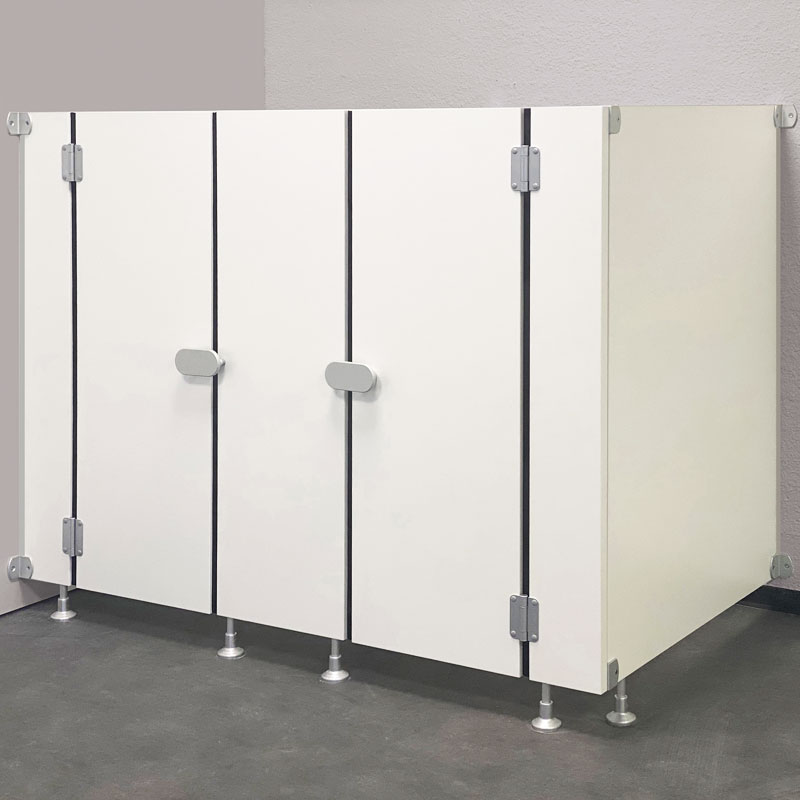

Design 30 KG standard design
Frontside
Made of 30 mm melamine coated solid chipboard. All visible edges are seamlessly coated with PP-laser edging. Wall connections at on-site wall with aluminium brackets and U-profiles.
Doors
Made of the same material as the frontside, self-closing design. All visible edges are seamlessly coated with laser edging. All corners and edges are rounded. The door width is 470 mm, the passage width 474 mm. In accordance with the BAGUV (German Federal Association of Public-sector Accident Insurers) regulations, the doors are equipped with anti-pinch protection on both sides.
WC cubicles

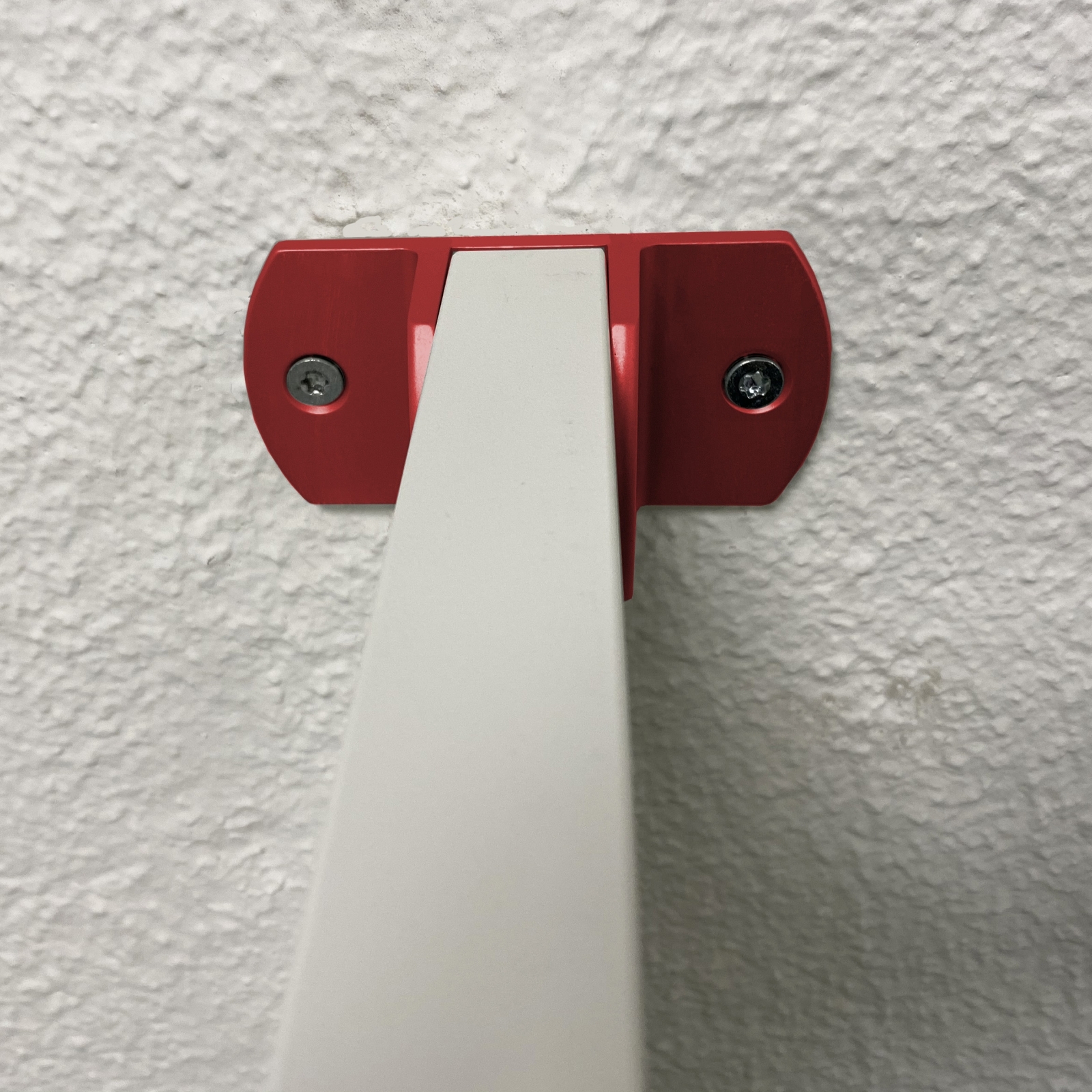

Made of the same material as the frontside. All visible edges are seamlessly coated with laser edging. Connection to the front with solid double-sided aluminium brackets. Wall connections at on-site wall with aluminium brackets and U-profiles.

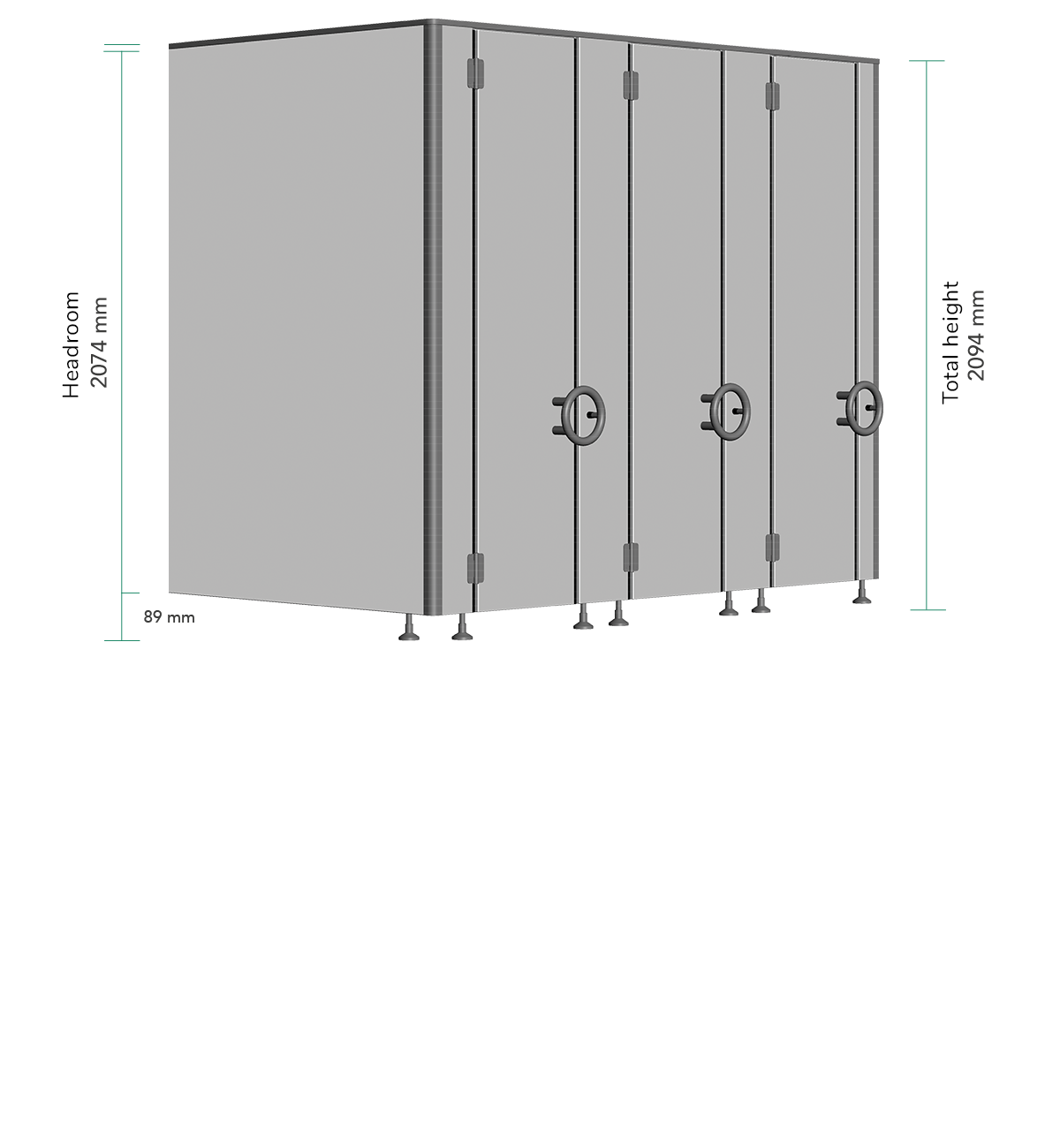

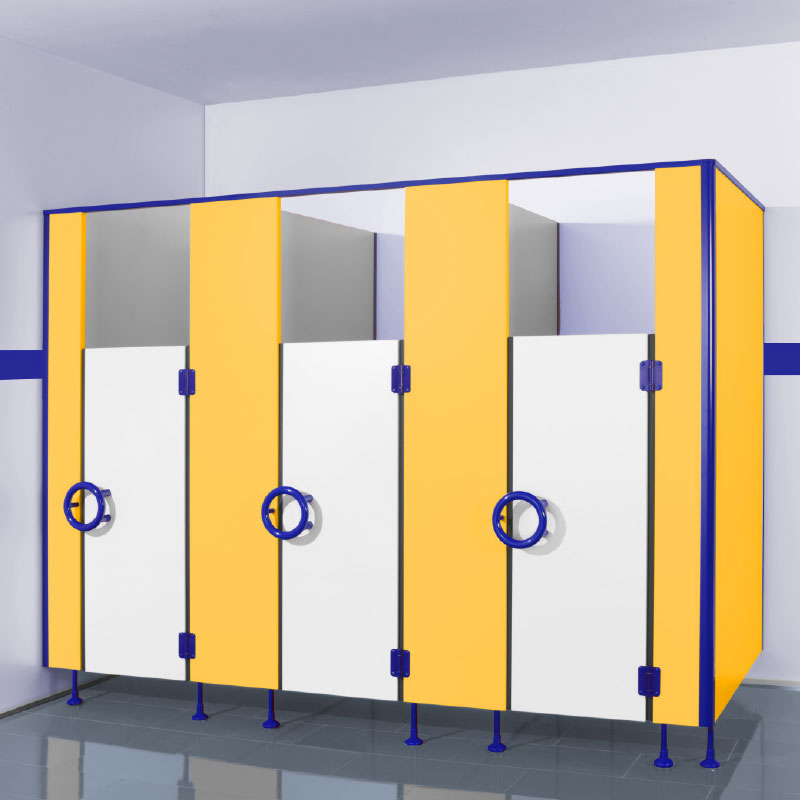

Design 30 KG-LF and Design 30 KG-LFH
Frontside
Made of 30 mm melamine coated solid chipboard. All visible edges are seamlessly coated with laser edging. An all-round aluminium cover profile, 43 x 20 mm, runs along the entire front of the system to ensure high stability. Wall connections with aluminium U-profiles 33 x 30 mm are used to compensate for structural unevenness.
Doors
Made of the same material as the frontside, self-closing design. All visible edges are seamlessly coated with laser edging. All corners and edges are rounded. The door width is 470 mm, the passage width 474 mm. In accordance with the BAGUV (German Federal Association of Public-sector Accident Insurers) regulations, the doors are equipped with anti-pinch protection on both sides.
WC cubicles

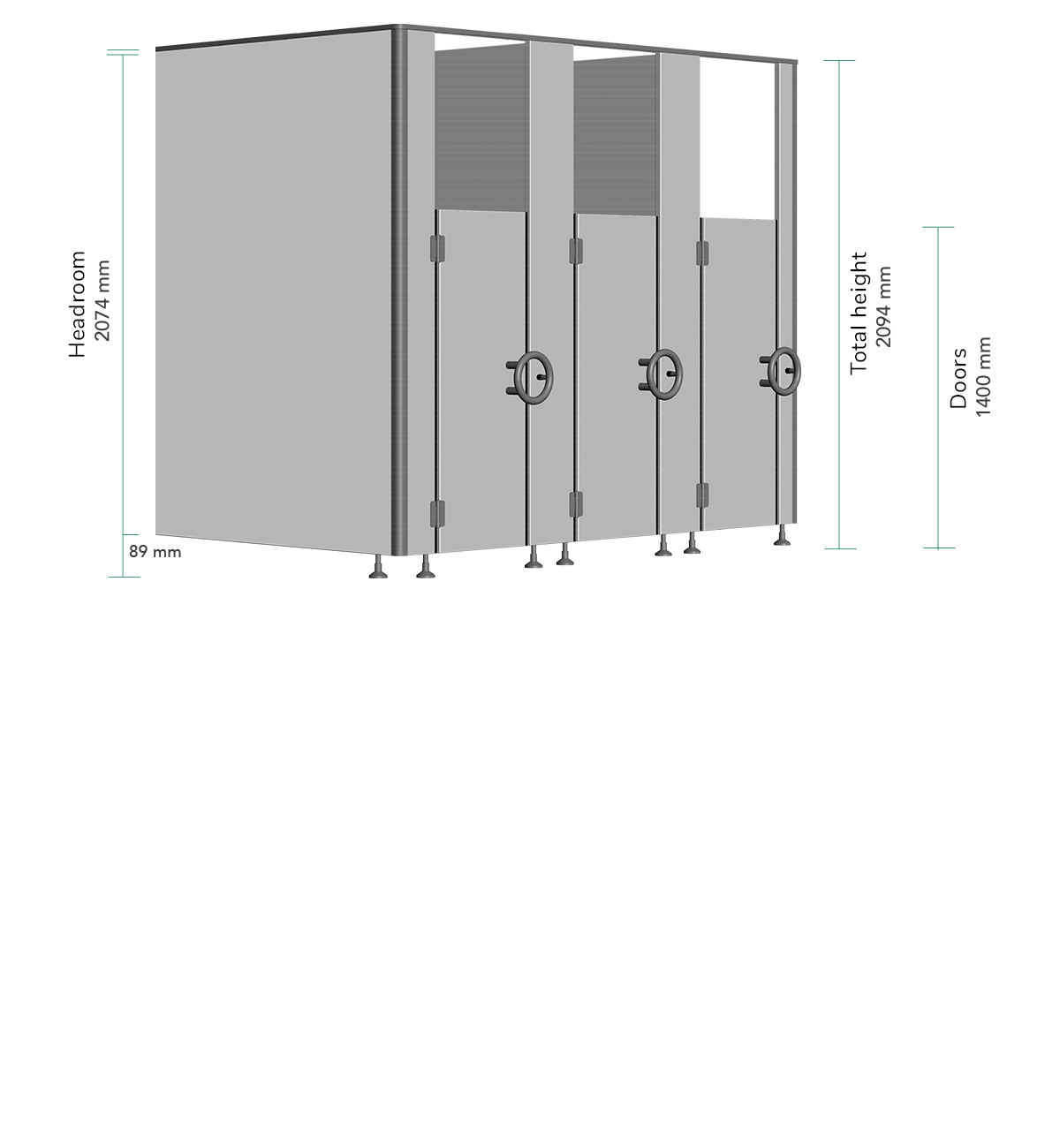

Made of the same material as the frontside. All visible edges are seamlessly coated with laser edging. The cubicle is fixed to the wall and frontside with a U-profile, 33 x 30 mm. 140 cm high cubicles are fixed with aluminium brackets.
Panel material
Safety is our top priority. Both with the more economical systems for dry areas and with the indestructible wet area systems. Rounded edges and profiles, safety ring door handles and finger trap protection ensure children are protected from injury in all our designs.
Dry area Design 30 KG
- Made of 30 mm melamine-coated solid chipboard
- Visible edges with laser edging
- Suitable for normal use in dry areas
COLOURFUL MOTIFS
Make the stay an experience
Whether pirates, fairies, knights or princesses - the doors can be decorated with one of our 5 standard motifs or your own motif of choice. This makes the washrooms not only a unique place, but going to the toilet becomes an adventure.
Seamless laser edging
- Perfect look
- More durable than conventional edges
- Suitable for normal use in dry areas
- Laser welding without conventional hot melt adhesive
- Significantly better adhesion
- No visual joint between edge and panel
- Meets the highest quality requirements
- Less sensitive to dirt than conventional edges
Colour range
Panels standard colours
Panels special colours with surcharge. Delivery time 15 weeks.
Due to the current difficulties in the supply of materials in the construction industry, there may be significantly longer delivery times for special colors. We apologize for this situation, which is beyond our control.
Profiles and accessories standard colours
Downloads
“HIGH quality” is our normal
Perfect design as standard
We highly value stable, durable and vandalism-proof designs. Triple knuckle stainless steel hinges are fitted as standard in every installation. High-quality aluminium profiles and nylon accessories are also available in various colours at no extra charge. You can also choose between 12 standard panel colours. All visible edges are finished with a laser edging. This process is unique in the cubicle industry and highlights once again the quality of our products.
Highlights: Triple knuckle stainless steel hinges with brass pin · 12 standard and 18 special panel colours · 7 colours for nylon fittings · 8 colours for aluminium profiles, stainless steel hinges, aluminium brackets and handle plates · Visible panel edges with laser edging · Short delivery times · TÜV approved
Extras for children
High-quality and colourful
Our range of accessories will make your kindergarten's bathrooms really practical. The material and design of all components are perfectly matched to our toilet cubicle systems.
