Design 13 RP WC cubicle

With rounded aluminium profiles

Our Design 13 RP WC cubicles are the perfect toilet cubicles for any area that faces extreme demands.

They are made of 13 mm HPL solid core panels, which have a special surface finish to make them highly scratch-resistant, low-wear and abrasion-resistant. The solid-core material means that the edges are not finished with an edge band, but are milled directly from the panel material. This system is totally waterproof and a gold standard for stability, functionality and protection against vandalism.

Versions

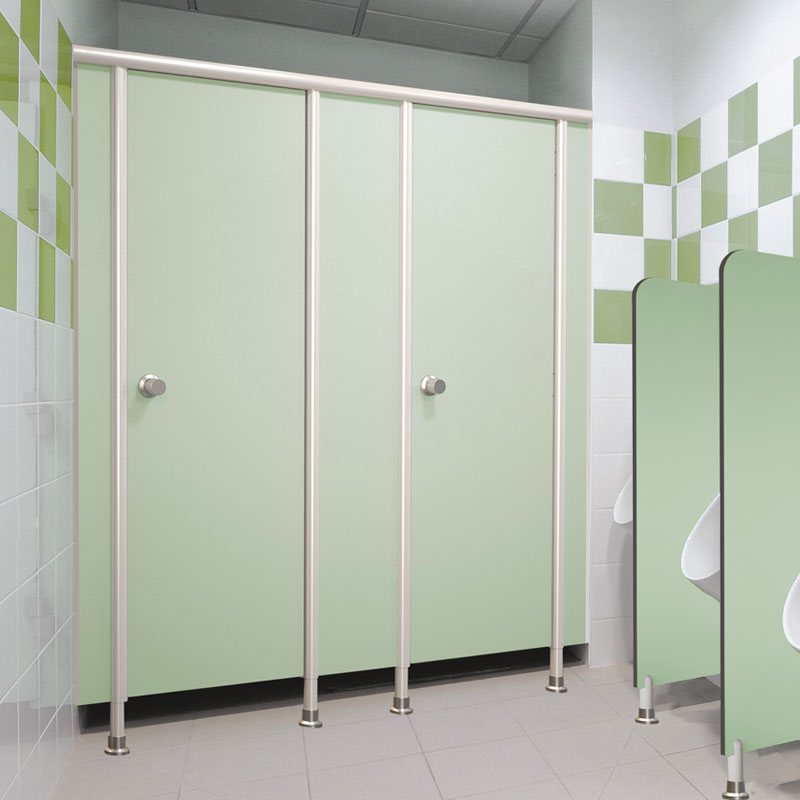

Standard

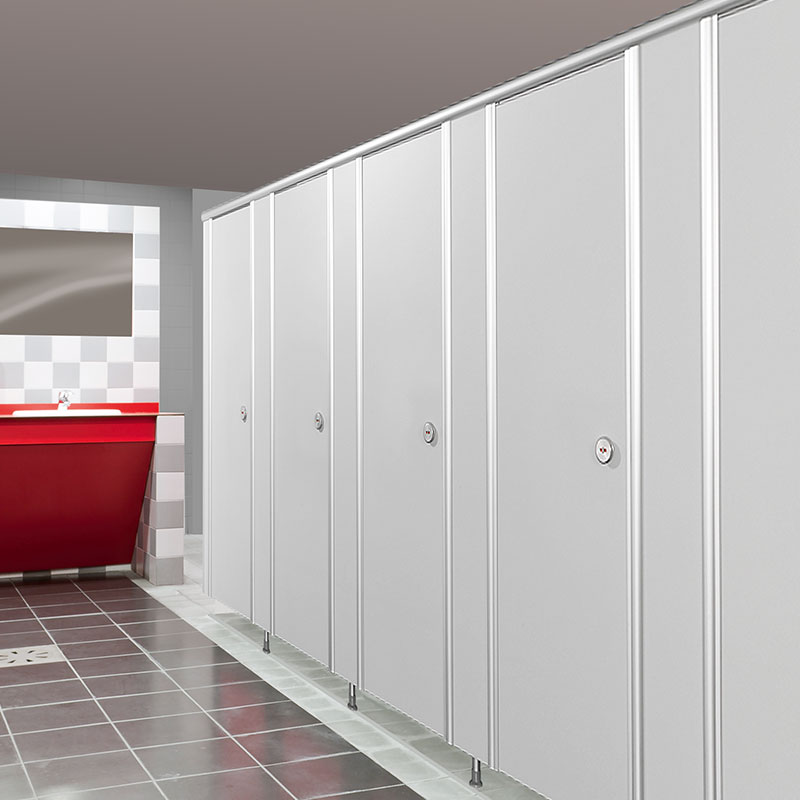

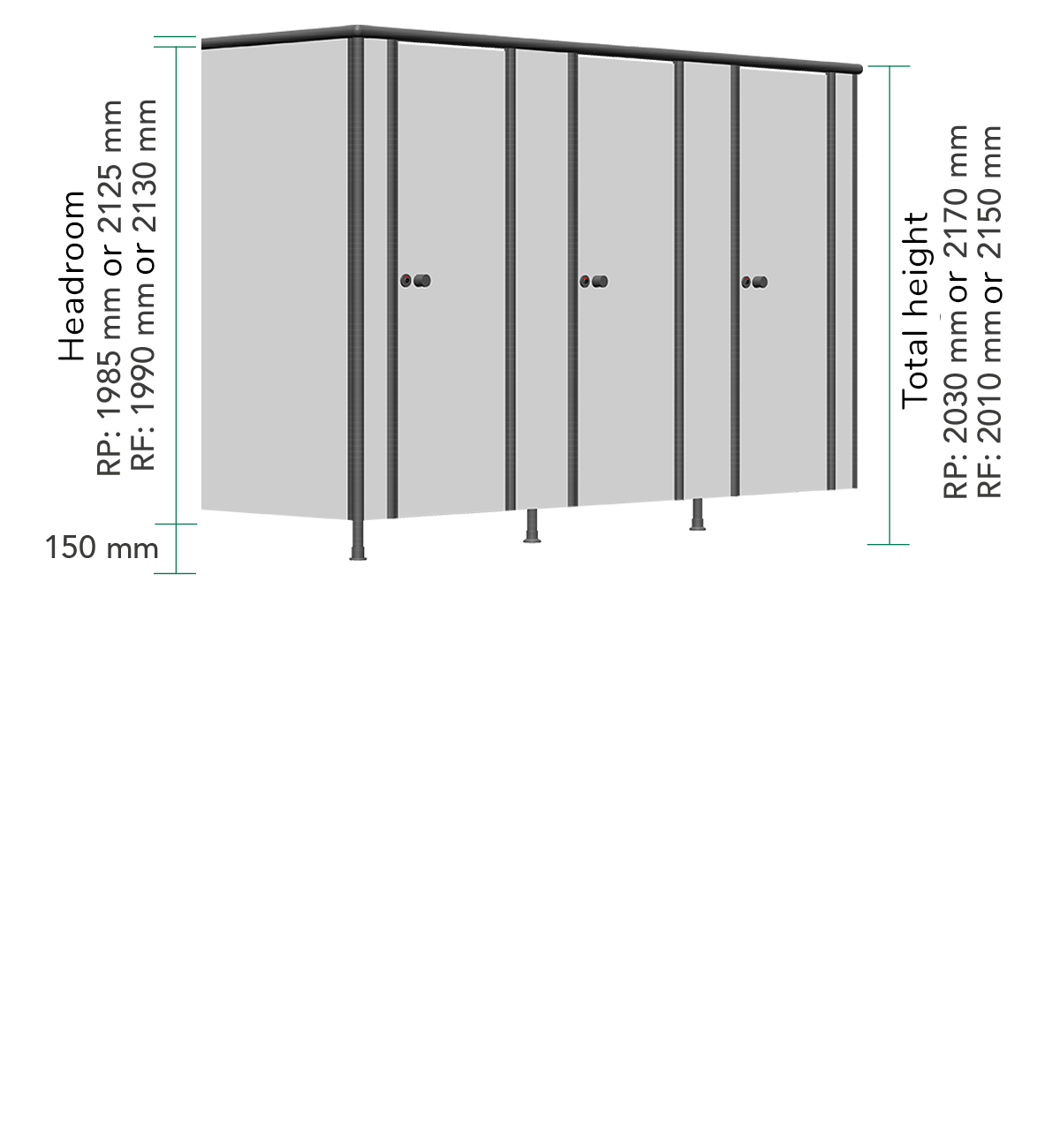

Floating

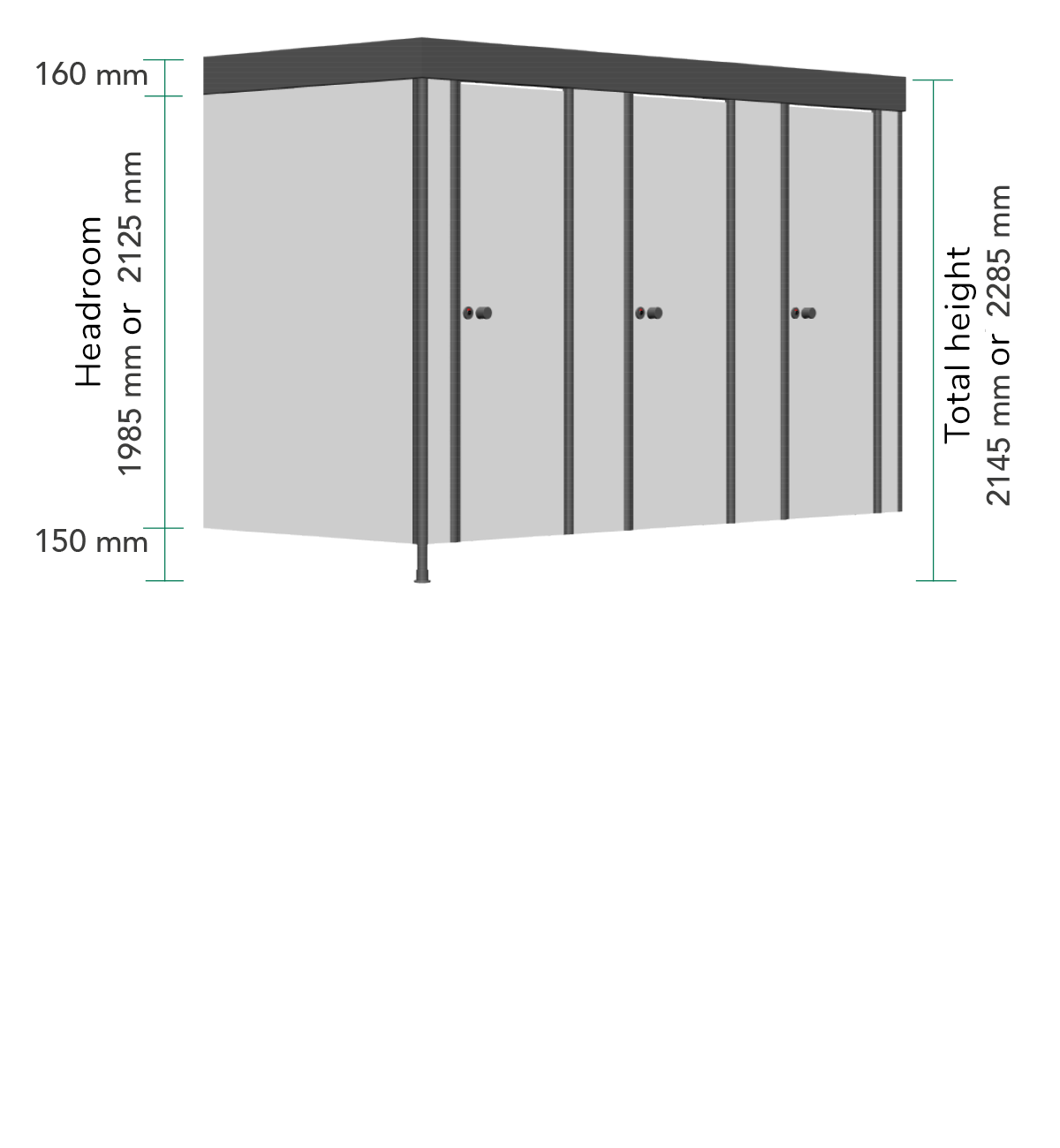

Suspended

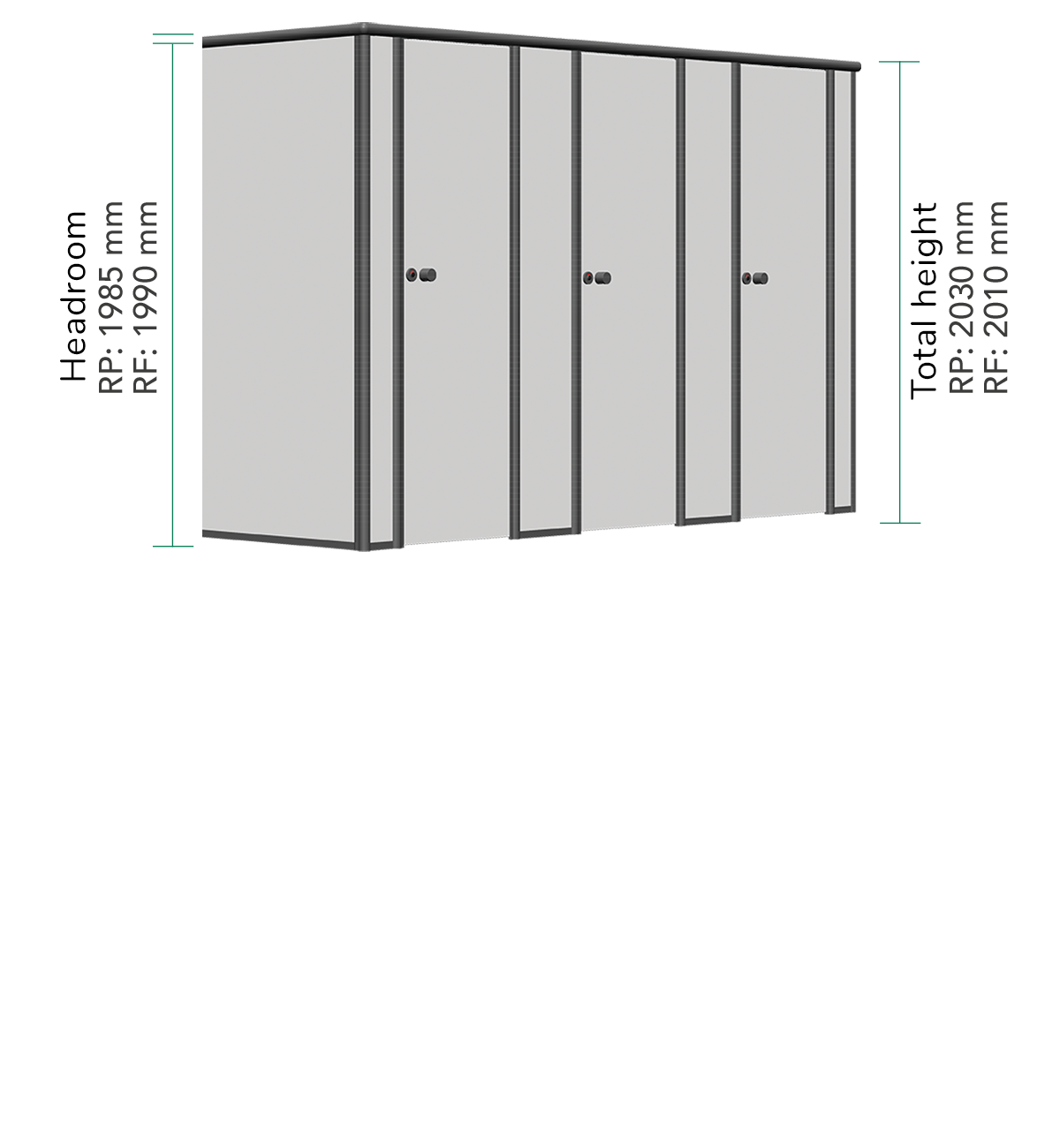

Without clearance

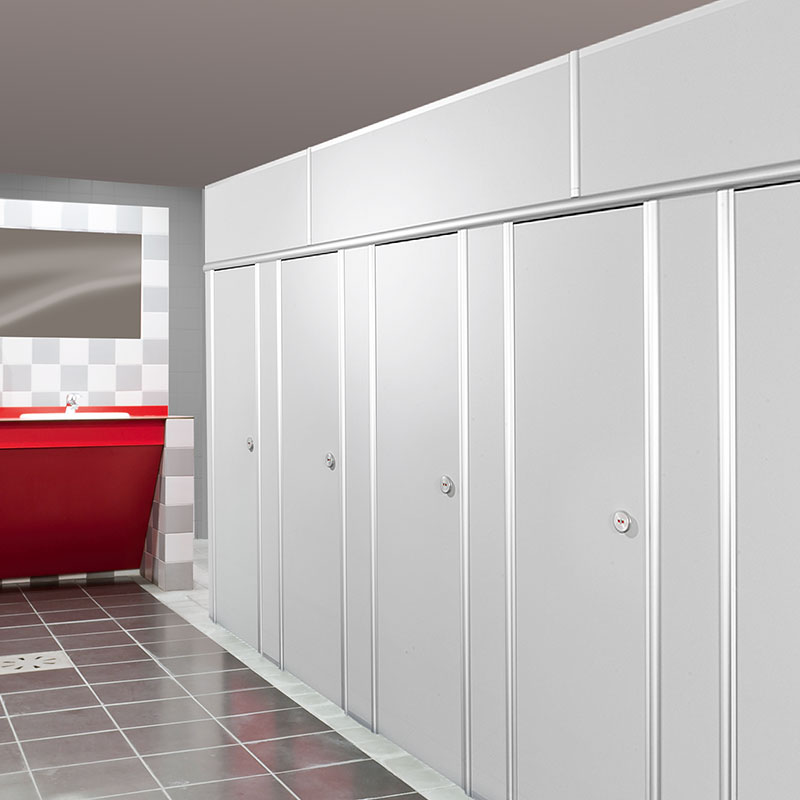

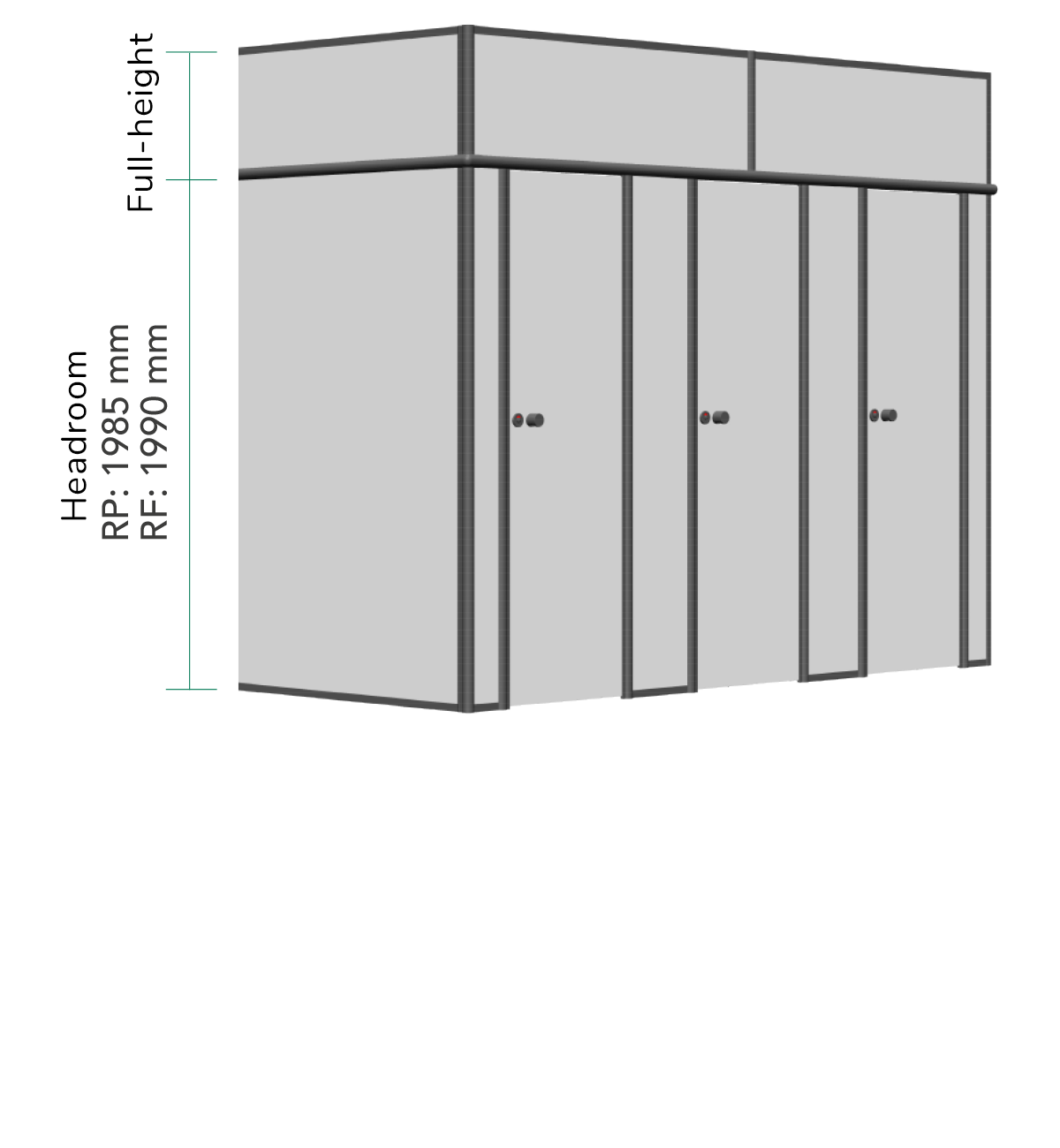

Full-height with panels

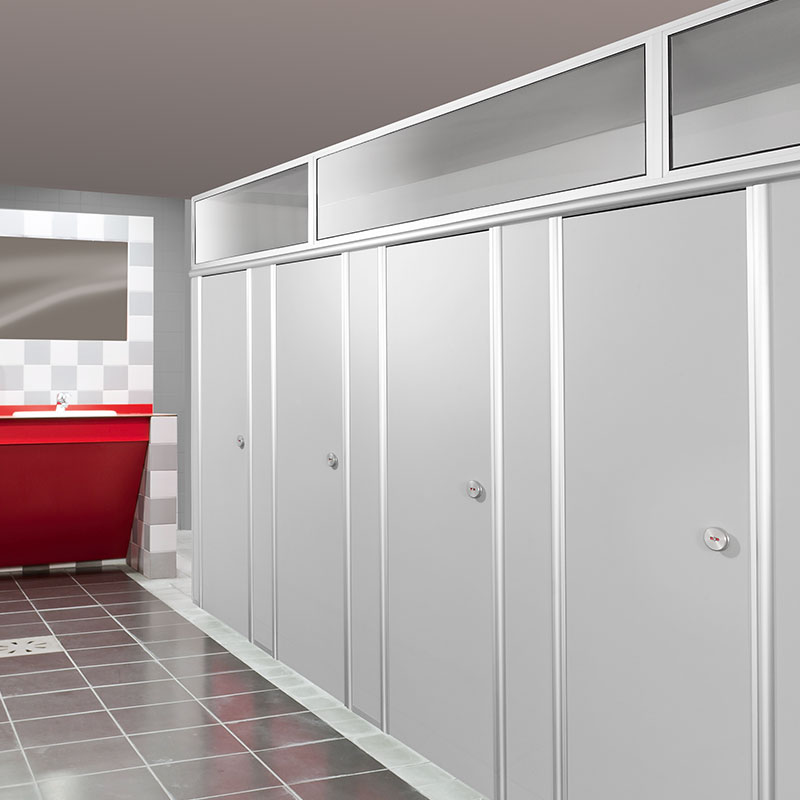

Full-height with glass

Technical Specifications

Frontside
Made of 13 mm water-resistant HPL panels with a brushed surface on both sides. All visible edges milled and chamfered. An all-round 3-chamber aluminium cover profile, 45 x 86 mm, which runs across the entire frontside, ensures the system is extremely stable. Wall connections with rounded aluminium U-profiles 22 x 30 mm. These are used to compensate for structural unevenness.

Doors
Made of the same material as the frontside, flush-mounted and self-closing. All edges are rounded to a radius of 20 mm, all corners are rounded to a radius of 9 mm. Door stop made of aluminium round profile ø 45 mm, with inserted rubber seal on the lock side to ensure quiet closing of the door.

WC cubicles
Made of the same material as the frontside. The visible edges at the top and bottom are milled and chamfered. The WC cubicle is fixed to the wall and frontside with a rounded aluminium U-profile, 22 x 30 mm.

Panel material

13 mm thick HPL solid core panels, which have a special surface finish to make them highly scratch-resistant, low-wear and abrasion-resistant. The solid-core material means that the edges are not finished with an edge band, but are milled directly from the panel material. This system is totally waterproof and a benchmark for stability and functionality.

Made of 13 mm HPL plate
With rounded aluminium profiles
Suitable for the highest demands in wet areas

Colour range

Panels standard colours

90 White

70 Grey

22 Light beige

81 Fango

25 Yellow green

75 Dark grey

77 Graphite

31 Ruby red

41 Mango

54 Gentian blue

91 Pepper white

71 Pepper grey

Panels special colours with surcharge. Delivery time 15 weeks.

Due to the current difficulties in the supply of materials in the construction industry, there may be significantly longer delivery times for special colors. We apologize for this situation, which is beyond our control.

33 Sanitary white

80 Black

74 Birch grey

62 Sea green - available from 02/2022

19 Cappuccino

15 Burano

21 Signal red

13 Minola

11 Mandarin

23 Lamar

17 Atlantic

18 Arctic

12 Quarzo

36 Serenissima

92 Silverspruce

48 Oak

26 Arezzo

27 Prado

Profiles and accessories standard colours

White / RAL 9010

Grey / RAL 7038

Red / RAL 3003

Yellow / RAL 1021

Dark blue / RAL 5011

Ultramarine / RAL 5002

Black / RAL 9005

Anodised look (only hinges and at surcharge rosettes)

Aluminium anodized (only for profiles)

Downloads

Contact

“HIGH quality” is our normal

Perfect design as standard

We highly value stable, durable and vandalism-proof designs. Triple knuckle stainless steel hinges are fitted as standard in every installation. High-quality aluminium profiles and nylon accessories are also available in various colours at no extra charge. You can also choose between 12 standard panel colours. meta has the most advanced production facility for cubicles in the world. This guarantees precision and reliably high quality.

Highlights: Triple knuckle stainless steel hinges with brass pin · 12 standard and 18 special panel colours · 7 colours for nylon fittings · 8 colours for aluminium profiles and stainless steel hinges · Short delivery times · TÜV approved
